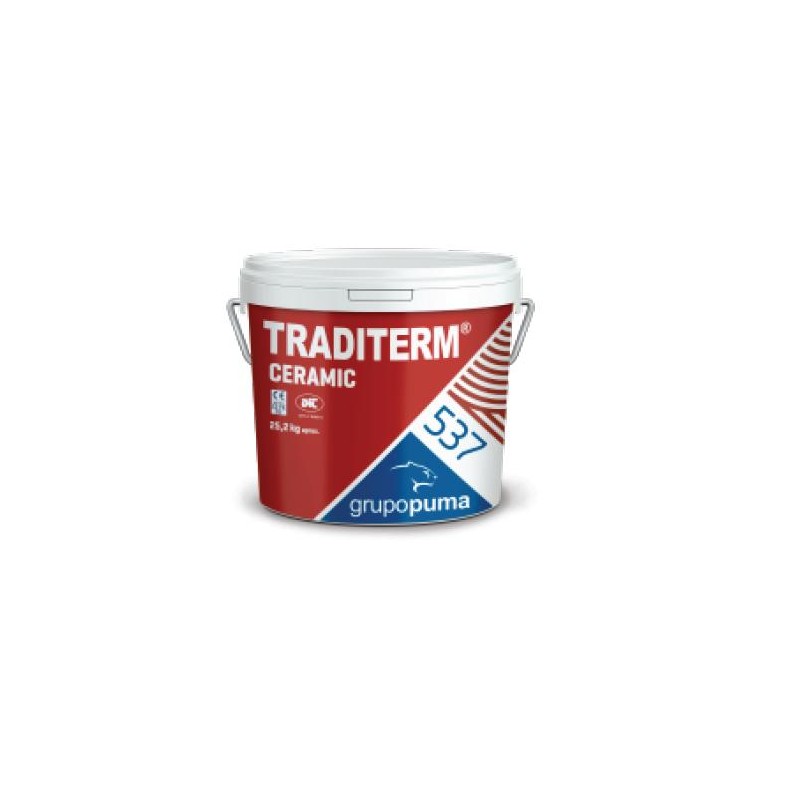

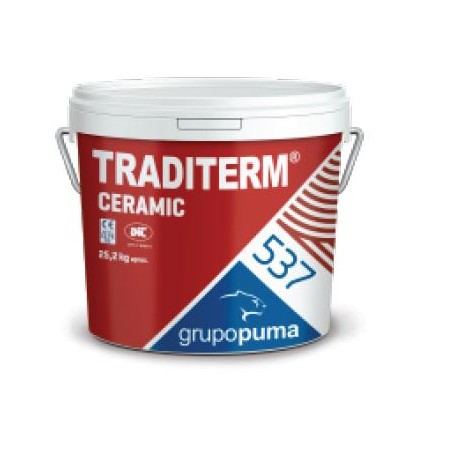

Traditerm® Ceramic

Features and applications

• Ceramic application over TRADITERM CERAMIC (SATE/ETICS) System.
• Product certified in accordance with DIT No. 605/14, for installing ceramic over the TRADITERM CERAMIC (SATE/ETICS) System
• Non-slip. Excellent initial bonding.
• Long open time, allows for the repositioning of tiles.
• Highly Deformable. Type S2.

Substrates

• External thermal insulation system TRADITERM CERAMIC (SATE/ETICS).
• The base coat of the system to be treated with ceramic, must have been previously cured for at least 48 hours.
• In case of hot or windy weather conditions it is advisable to wet the substrate and wait until the thin layer of water disappears.

Instructions for use

• At least 48 hours after applying the last Traditerm mortar base coat, the ceramic is applied to the system with TRADITERM CERAMIC adhesive.
• The  TRADITERM CERAMIC adhesive product consists of two components: a bag of mortar and a container of liquid resin, which must be mixed mechanically in its entirety without any other additives, until a uniform consistency has been obtained.
• Let the mixture stand for 5 minutes and remix.
• Spread the mixed product onto the substrate (TRADITERM CERAMIC (SATE/ETICS) System) with a trowel to a maximum surface area of 1 ^m2.
• Spread with a notched trowel to adjust the thickness (see chart).
• With the aid of a trowel, spread the product over the surface of the ceramic tile (using the double bonding technique).
• Lay the tiles, pressing and moving them to ensure total and correct adhesion to the grooves and correct adhesion with the entire surface.
• Respect the construction joints:
  • Expansion Joints.
  • Partitioning Joints – Carry out every 3 vertical metres and 4 horizontal metres. Subsequently seal with the Pumalastic Range.
  • Joints between tiles – Minimum thickness of 4 mm. After at least 24 hours after fixing the tiles, grout with the Morcem Colour Plus Range.

Notched-trowel panel

Maximum tile weight with the TRADITERM CERAMIC System: 22 kg/m²

Cautions and recommendations

• Do not apply under 5ºC nor above 30ºC.
• Do not apply when there is a risk of frost, rain, strong wind or direct sunlight.
• In extreme weather conditions (strong winds or hot temperatures) drying may occur faster than normal.
• The mortar and resin kit supplied must be fully mixed to achieve the product's performance.
• For best results lay tiles as soon as possible after spreading.
• The double bonding technique should be used for fixing ceramic tiles.
• Do not install ceramic tiles higher than 30 metres with the Traditerm Ceramic (SATE/ETICS) System. Please consult our technical department for heights above 30 metres.

Main Characteristics of the ceramic to be used:

• The maximum tile format is 300 x 300 mm x 10 mm
• Maximum weight of the tiles: 22 kg/m²
• Groups I and II in accordance with EN-14411

Packaging

The kit contains: powder product in 20 kg laminated paper sacks + resin dispersion in 5.2 kg plastic packages.
Shelf life: 1 year in sealed original packaging, sheltered from weather conditions and humidity.

Note

Instructions of use are given based on our testing and knowledge and do not imply any commitment. Said instructions do not free the user from examining and verifying the product for its correct use. The manufacturer's liability is limited to the value of the used goods. Any complaints must be accompanied with the product's original packaging for traceability purposes.

Technical data

(Statistical data obtained under standard conditions)
